Frame
Size: XS: Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle; Size: S , M , L , XL: Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
-
Fork
Size: XS: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel; Size: S: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel; Size: M , L , XL: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
-
Hub front
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
-
Hub rear
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
-
Skewer rear
Bontrager Switch thru axle, removable lever
-
Rim
Size: XS , S , M , L , XL: Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve; Size: XS , S , M , L , XL: Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
-
Spokes
14 g stainless steel, black
-
Tyre
Size: XS , S: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"; Size: M , L , XL: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
-
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
-
Max tyre size
Frame: 29x2.6" (XS: 27.6x2.6") Fork: See manufacturer
-
Battery
Bosch CompactTube 400 Wh
-
Charger
Bosch standard 2A, 230V, smart system
-
Computer
Bosch Purion 200
-

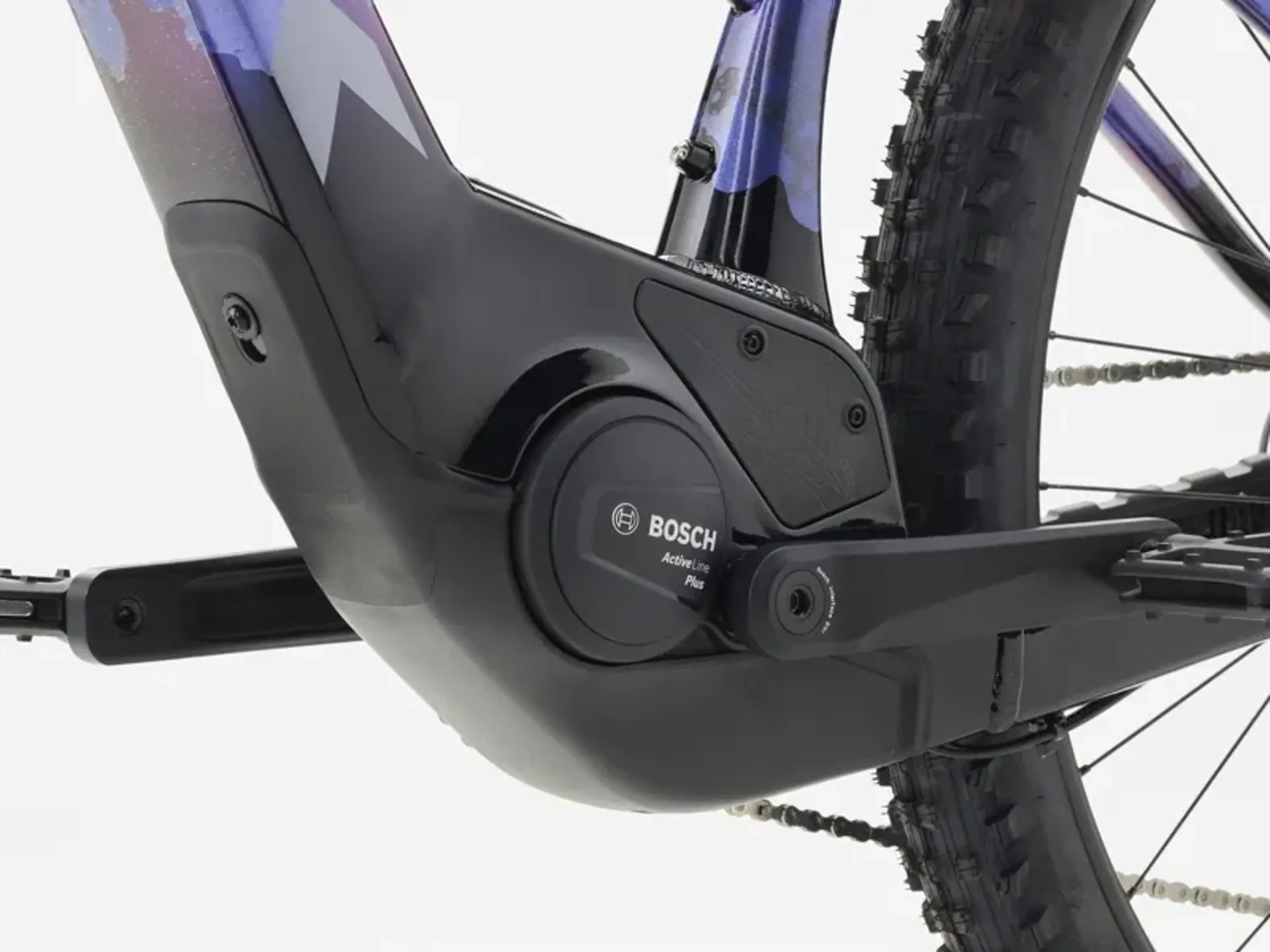

Motor
Bosch Active Line Plus, 50 Nm
-
Shifter
Shimano Deore M6100, 12-speed
-
Rear derailleur
Shimano Deore M6100, long cage
-
Crank
FSA CK-220, 165 mm length
-
Chainring
FSA, 32T, steel
-
Cassette
Shimano Deore M6100, 10-51, 12-speed
-
Chain
Shimano Deore M6100, 12-speed
-
Pedal
VP-536 nylon platform
-
Max. chainring size
1x: 36T, min 32T
-
Saddle
Bontrager Verse P3, steel rails
-
Seatpost
Size: XS , S: TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length; Size: M , L , XL: TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
-
Handlebar
Size: XS , S: Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width; Size: M , L , XL: Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
-
Grips
Trek Line Comp, nylon lock-on
-
Stem
Size: XS , S: Bontrager Comp, 31.8 mm, 7-degree, 35 mm length; Size: M , L: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length; Size: XL: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
-
Head set
Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
-
Brake
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
-
Brake rotor
Shimano RT64, CentreLock, 203 mm
-
Rotor size
Max brake rotor sizes – Frame: 203 mm, min 180 mm, fork: see fork manufacturer
-
Weight
M - 21.89 kg / 48.26 lbs (with TLR sealant, no tubes)
-
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
