Frame

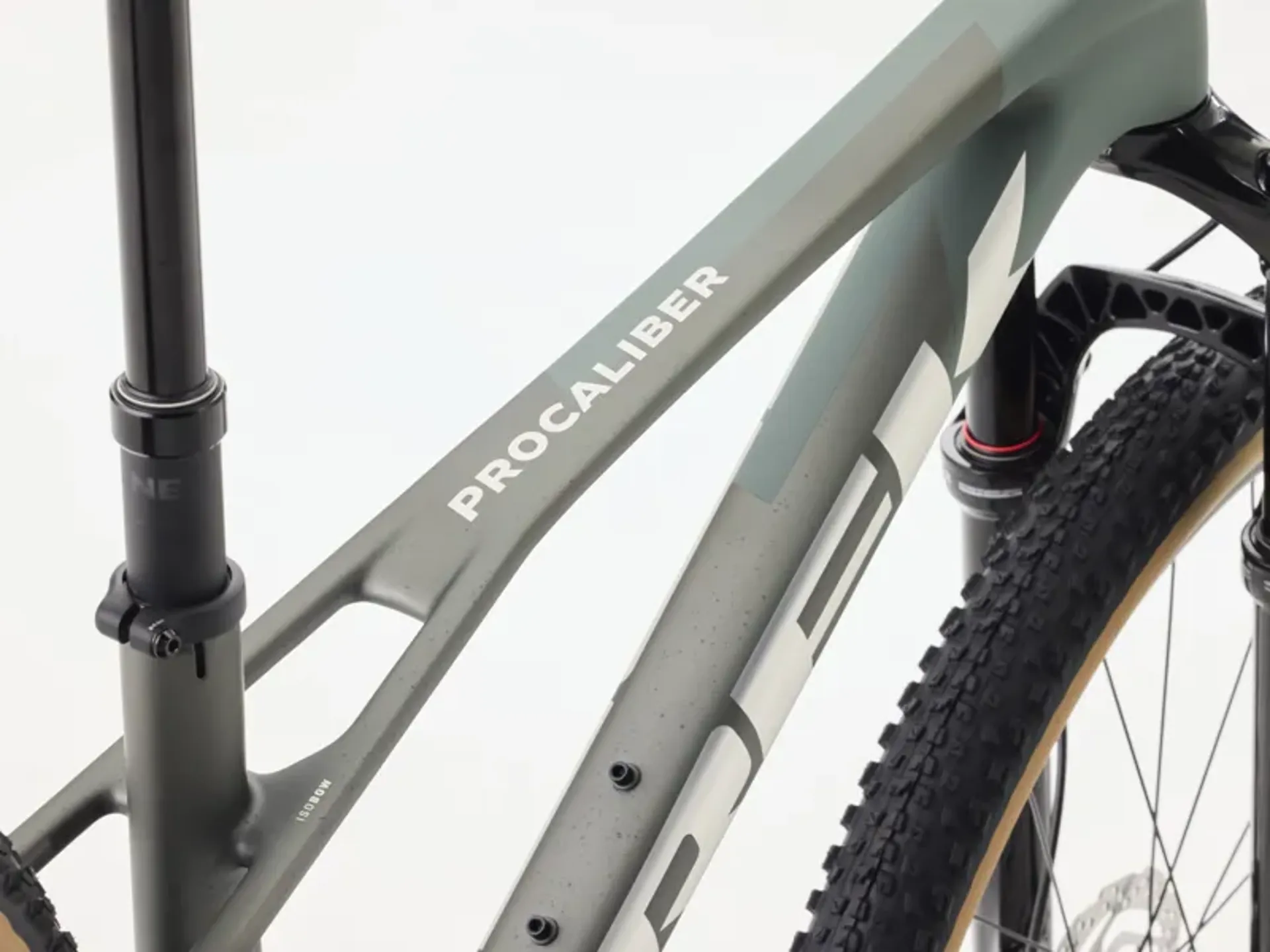

OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148
-
Fork
RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
-
Hub front
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
-
Hub rear
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
-
Rim
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
-
Tyre
Size: S, M, ML, L, XL Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"; Size: S, M, ML, L, XL Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20"
-
Max tyre size
Frame: 29x2.40", Fork: See manufacturer
-
Shifter
Shimano Deore M6100, 12-speed
-
Rear derailleur
Shimano Deore M6100, long cage
-
Crank
Size: S, M, ML Shimano MT512, 32T, 55 mm chain line, 170 mm; Size: L, XL Shimano MT512, 32T, 55 mm chain line, 175 mm
-
Bottom bracket
Shimano MT500, 92 mm, PressFit
-
Cassette
Shimano Deore M6100, 10-51, 12-speed
-
Chain
Shimano Deore M6100, 12-speed
-
Max. chainring size
1x: 38T
-
Saddle
Verse Short, chromoly rails, 145 mm width
-
Seatpost
Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length; Size: M, ML, L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length; Size: XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
-
Handlebar
Size: S Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width; Size: M, ML, L, XL Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
-
Grips
Size: S, M, ML, L, XL Bontrager XR Trail Comp, nylon lock-on; Size: S, M, ML, L, XL Trek Line Comp, nylon lock-on
-
Stem
Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length; Size: M, ML Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length; Size: L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
-
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
-
Brake
Shimano MT200 hydraulic disc
-
Brake rotor
Size: S, M, ML, L, XL Shimano RT10, CenterLock, 160 mm; Size: L, XL Shimano RT10, CenterLock, 180 mm
-
Rotor size
Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer
-
Weight
M – 12.13 kg/26.75 lb (with TLR sealant, no tubes)
-
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
